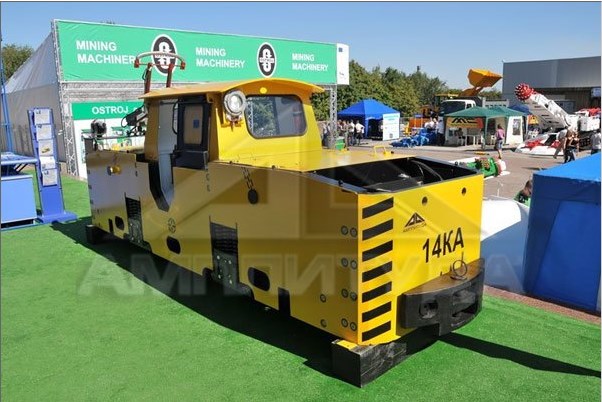

Trolley locomotive 4ÊÀ - Trolley locomotive 14ÊÀ - Trolley locomotive 10 ÊÀ
It is designed for transportation of rolling equipment across underground workings of mines and pits with a gradient up to0.005 and track bending radius minimum18 m, where the current safety regulations permit operation of trolley locomotives. Technical Specifications ÒU30.20.11-001-34743863-2019
Technical characteristics
Serial no. Designation of basic parameters and dimensions Unit of measure Value
1. Adhesive weight kg 14000
2. Nominal voltage at collector bow V 250+75/-50
3. Hours mode parameters: speed km/h 12,6
4. Hours mode parameters: electric motor power kWt 2õ45
5. Hours mode parameters: traction effort kN 25
6. Rail gage mm 750,900

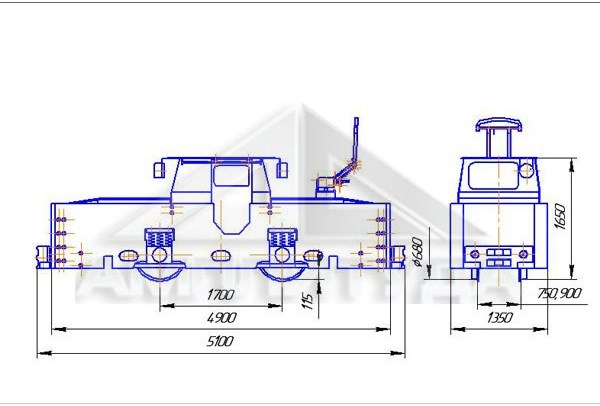

7. Overall dimensions mm 5100õ1350õ1650
8. Rigid wheelset mm 1700
9. Clearance (ground clearance) mm 115
10. Binding band outside diameter mm 680
