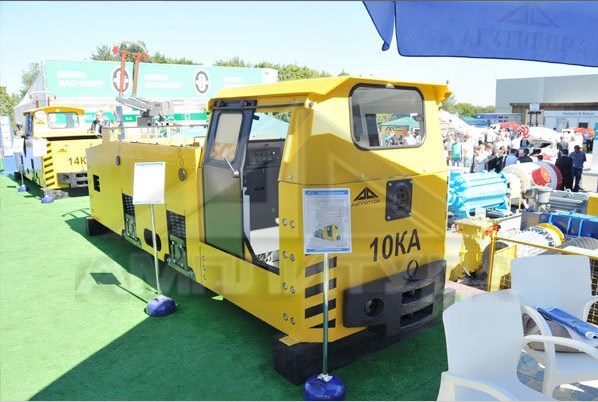

Trolley locomotive 14ÊÀ - Trolley locomotive 10 ÊÀ - Trolley locomotive  7ÊÀ

It is designed for transportation of rolling equipment across underground workings of mines and pits with a gradient up to0.005 and track bending radius minimum12 m, where the current safety regulations permit operation of trolley locomotives. Technical Specifications ÒU30.20.11-001-34743863-2019

14ka
14ka
14ka
14êà





Technical characteristics
Serial no. Designation of basic parameters and dimensions Unit of measure Value
1. Adhesive weight kg 10000
2. Nominal voltage of mains V 250+75/-50
3. Hours mode parameters: speed km/h 11,7
4. Hours mode parameters: electric motor power kWt 2õ33/2õ45
5. Hours mode parameters: traction effort kN 18/22
6. Rail gage mm 600/750,900
7. Overall dimensions mm 4900õ1050/1350õ1650
8. Rigid wheelset mm 1200
9. Clearance (ground clearance) mm 115
10. Binding band outside diameter mm 680
