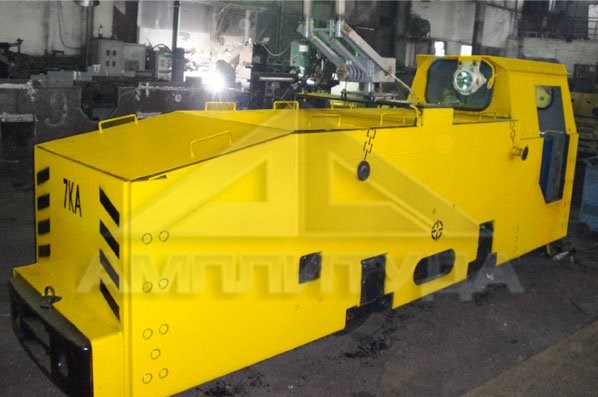

It is designed for transportation of rolling equipment across underground workings of mines and pits with a gradient up to0.005 and track bending radius minimum12 m, where the current safety regulations permit operation of trolley locomotives. Technical Specifications ÒU30.20.11-001-34743863-2019
Technical characteristics
| Serial no. | Designation of basic parameters and dimensions | Unit of measure | Value | ||||||
| 1. | Adhe
|
kg | 7900 | ||||||
| 2. | Nominal voltage at collector bow | V | 250+75/-50 | ||||||
| 3. | Speed in hours mode | km/h | 12,2 | ||||||
| 4. | Railway electric motor power in hours mode | kWt | 2õ33 | ||||||
| 5. | Traction effort in hours mode | kN | 18 | ||||||
| 6. | Rail gage | mm | 600/750,900 | ||||||
| 7. | Length over buffers | mm | 4600 | ||||||
| 8. | Width over projected parts: | ||||||||
| -for a track 600 | mm | 1050 | |||||||
| -for a track 750 | 1350 | ||||||||
| -for a track 900 | 1350 | ||||||||
| 9. | Height over operator’s cabin | mm | 1550 | ||||||
| 10. | Rigid wheelset | mm | 1200 | ||||||
| 11. | Clearance (ground clearance) | mm | 115 | ||||||
| 12. | Binding band outside diameter | mm | 680 | ||||||
